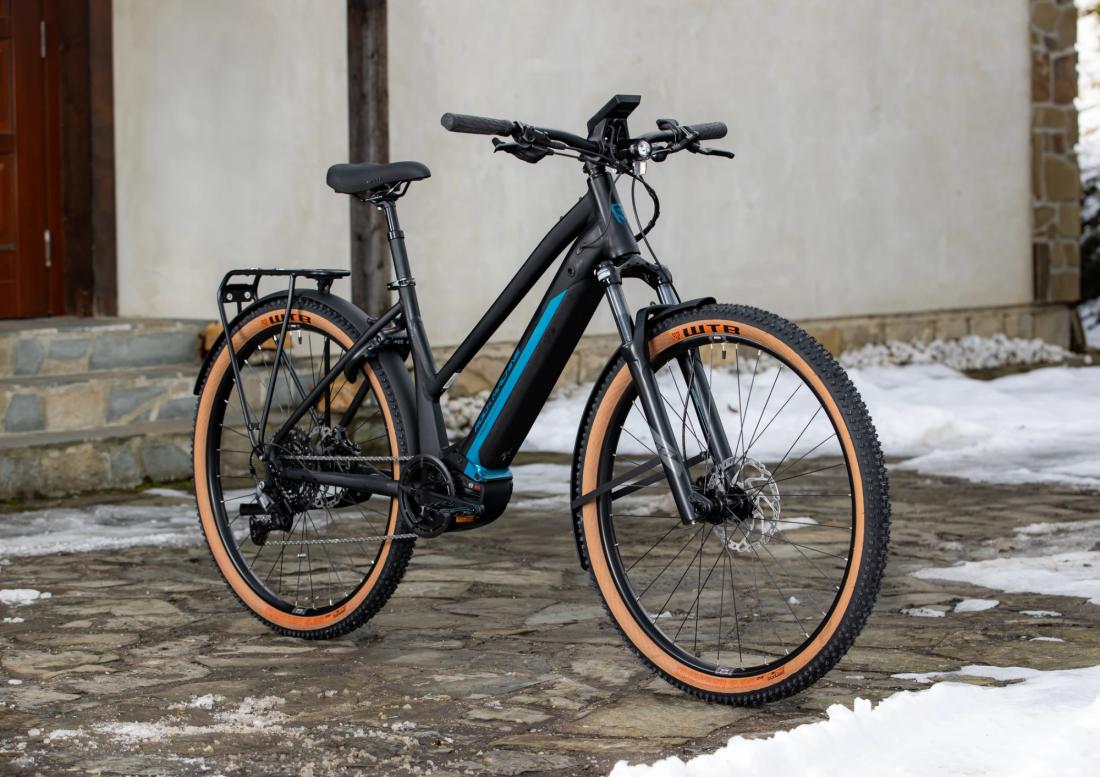

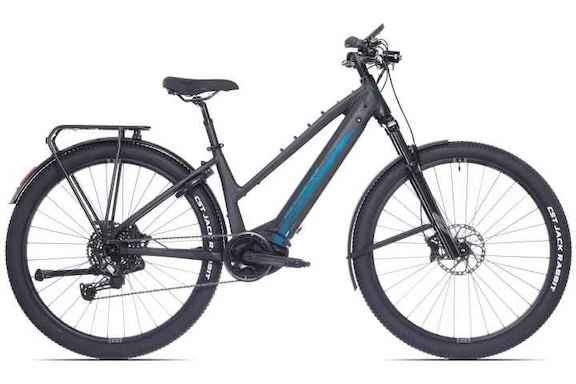

Electric bike frame with seamless integration of the battery, motor and internal cabling.
The most powerful Bosch CX Performance drive unit stands out for its extraordinary power,
quiet operation and low weight.
Combined with the 625 Wh battery, you get up to 150 km of range on a single charge. Shimano Deore ensures smooth gear changes. With this bike, you can tackle even tougher terrain thanks to the RockShox suspension or high-quality Schwalbe tyres.
- Product details
- Features
-
Key features
625 Wh battery / range up to 150 km
Bosch Performance Line CX drive unit with 250 W power and 85 Nm torque
NYON display with integrated GPS navigation
Powerful hydraulic brakes, suspension seat post, comfortable saddle
BOSCH E-SYSTEM Performance Line CX, Smart System G4, 625 Wh battery,
RANGE Up to 150 km
MAXIMUM TORQUE 85 Nm/400%
WEIGHT 25.80 kg
ISO and EN standards
LOAD CAPACITY 150 kg
Electric bike parts

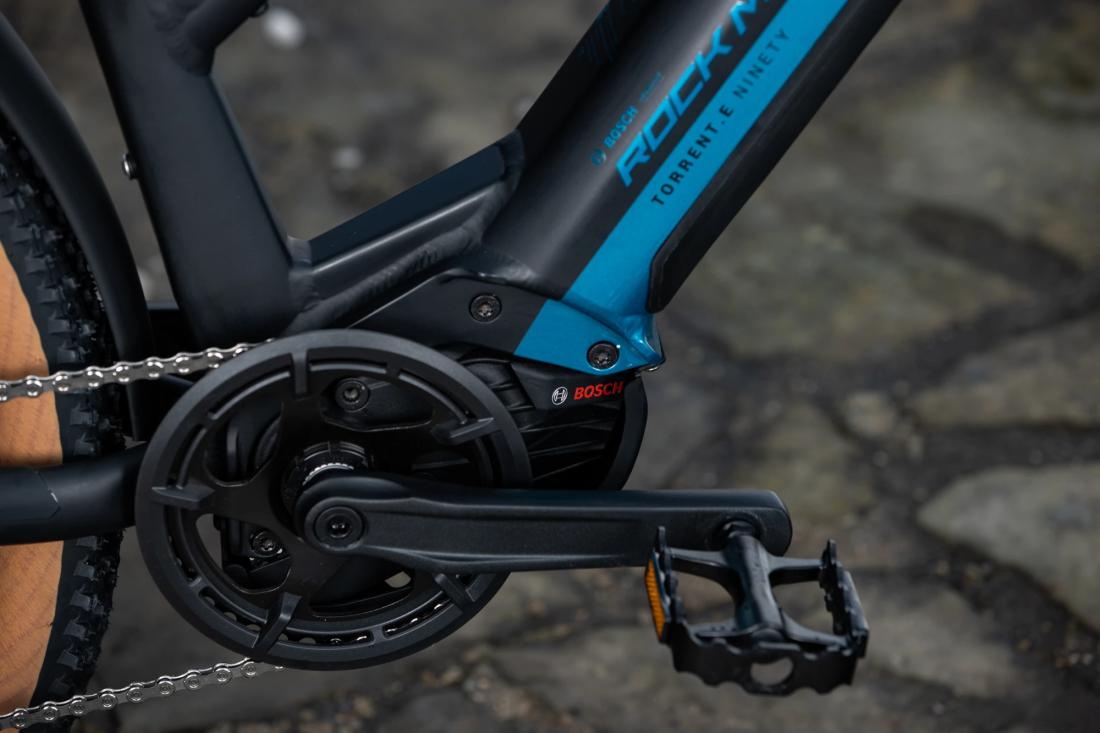

MOTOR UNIT BOSCH CX Performance Line, 36V, 250W, 75Nm
CHARGER Standard BOSCH 4A charger, charging time 4.5 hours/500Wh

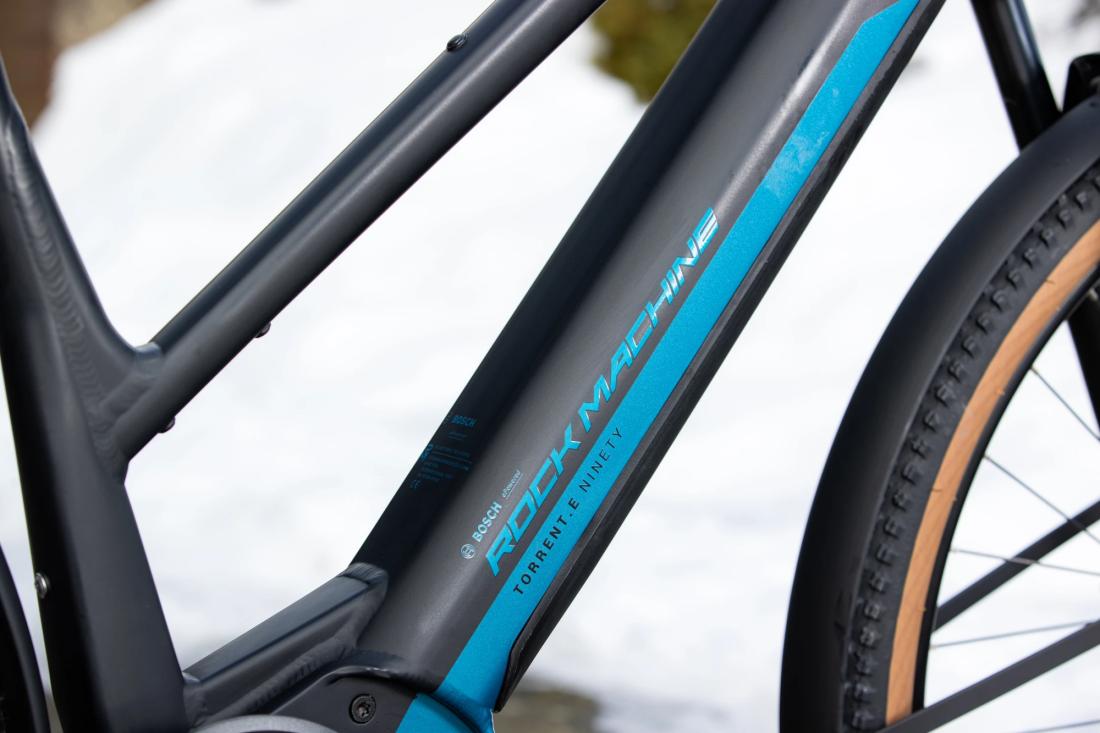

BATTERY BOSCH PowerTube 36V, 625Wh, integrated

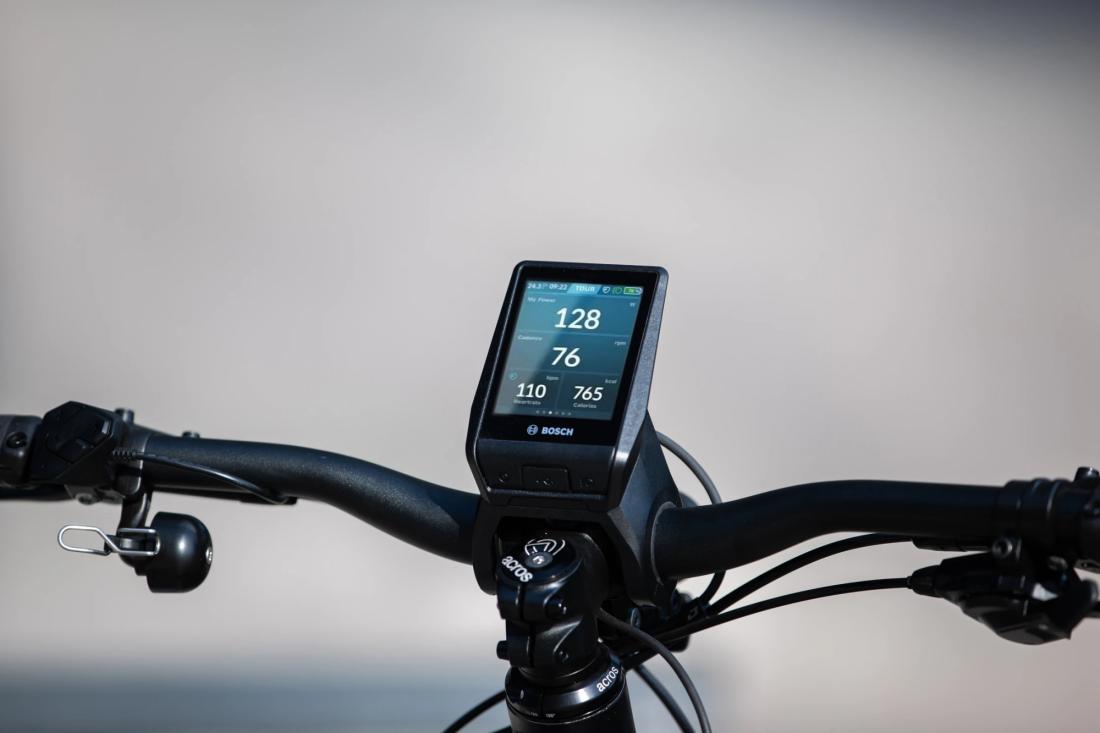

DISPLAY BOSCH NYON
Bike frame
FRAME Custom Al-6061 T6 alloy tubing, easy entry
SUSPENSION FORK RST Aerial, 1-1/8\1.5", Air, 120 mm travel
ACROS AZX-582 HEADSET, ZS44/28.6 | ZS56/40; 135° lockout
FRONT SUSPENSION TRAVEL 120 mm
Drivetrain
1x10 cassette, 11-48, 436%
SHIMANO SL-U6000 RIGHT-HAND SHIFT LEVER
SHIMANO RD-U6000 REAR DERAILLEUR
ONE1 EC39-BH4-F13-ISIS-L/R CRANKSET, 38T
38T CHAINRING

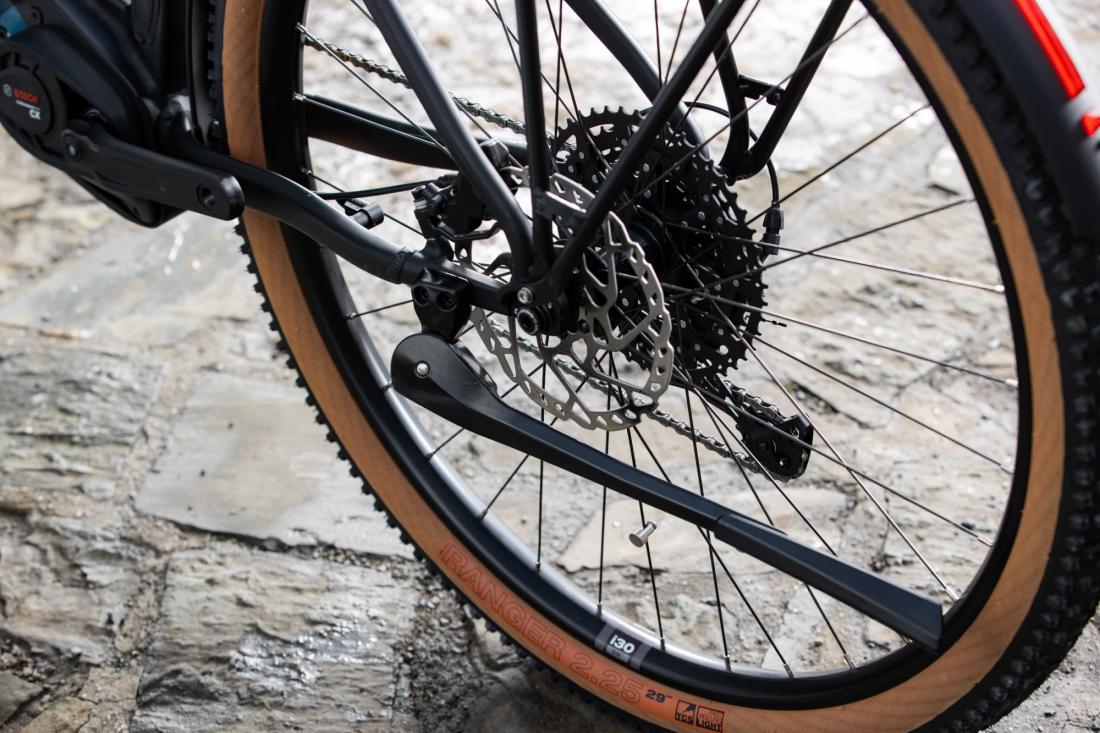

SHIMANO CS-LG300-10 Cassette, 11-48T
SHIMANO CN-LG500 CHAIN
Friends
SHIMANO MT420 FRONT BRAKE
SHIMANO SM-RT66 FRONT DISC, 180 mm
SHIMANO MT420 REAR BRAKE
SHIMANO SM-RT66 REAR DISC, 180 mm
Wheels
ONE1 QLSX9F FRONT HUB, 32H, 15x110mm THRU-AXLE Type
WTB STi 30 FRONT RIM
ONE1 KTQL2X2MR REAR HUB, 32H, 12x148mm, THRU-AXLE
REAR RIM WTB STi 30
SPOKES Sapim Leader, black stainless steel with secure-lock nipples
TYRES WTB Ranger Comp, 29x2.25
Frame
STEM Alloy TDS-C342, 31.8 mm, e45, +3°
HANDLEBAR ONE1 alloy, MTB AL-325BT, 6° up sweep, 9° back sweep, 25 mm rise, 720 mm, 31.8 mm

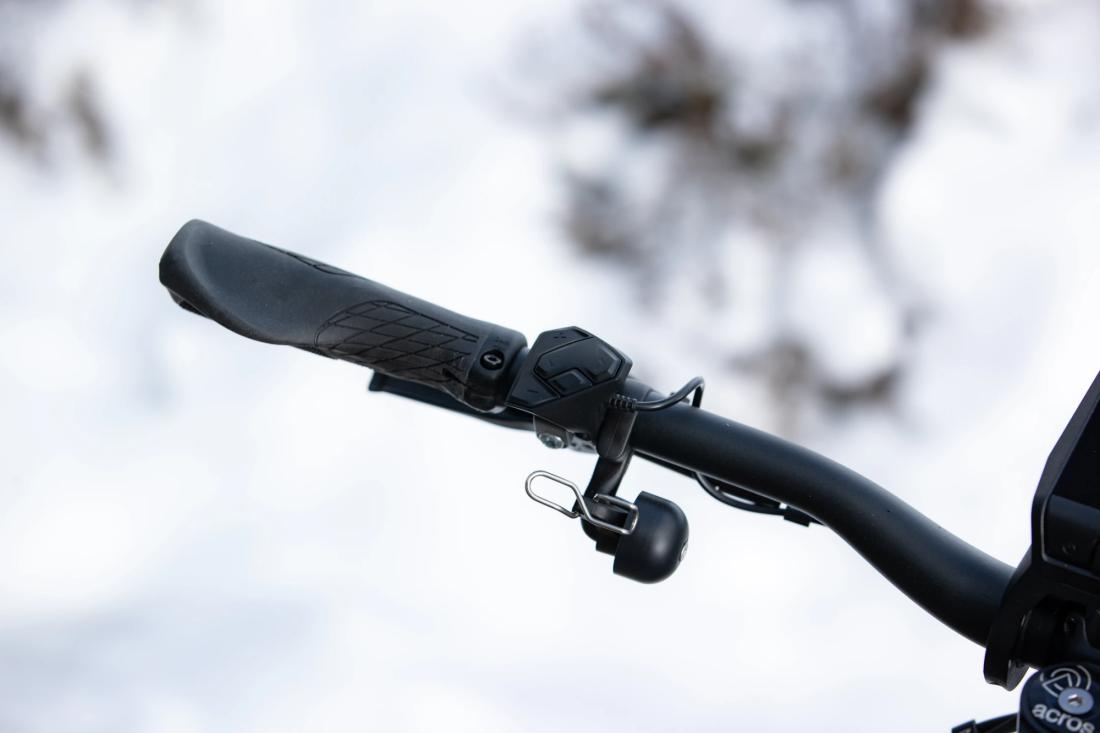

HERRMAN ERGO GRIP
Components

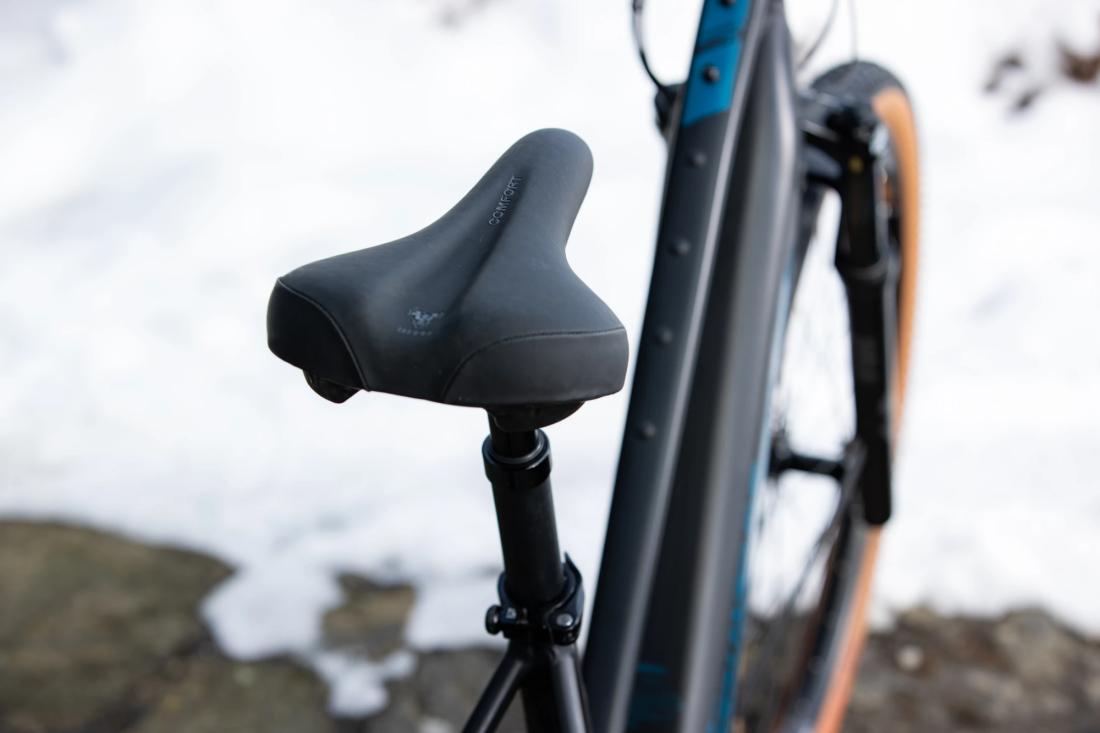

SADDLE WTB Koda
SEAT POST ONE1 alloy, SP S405, 30.9 mm
PEDALS Steel cage with reflector
Equipment

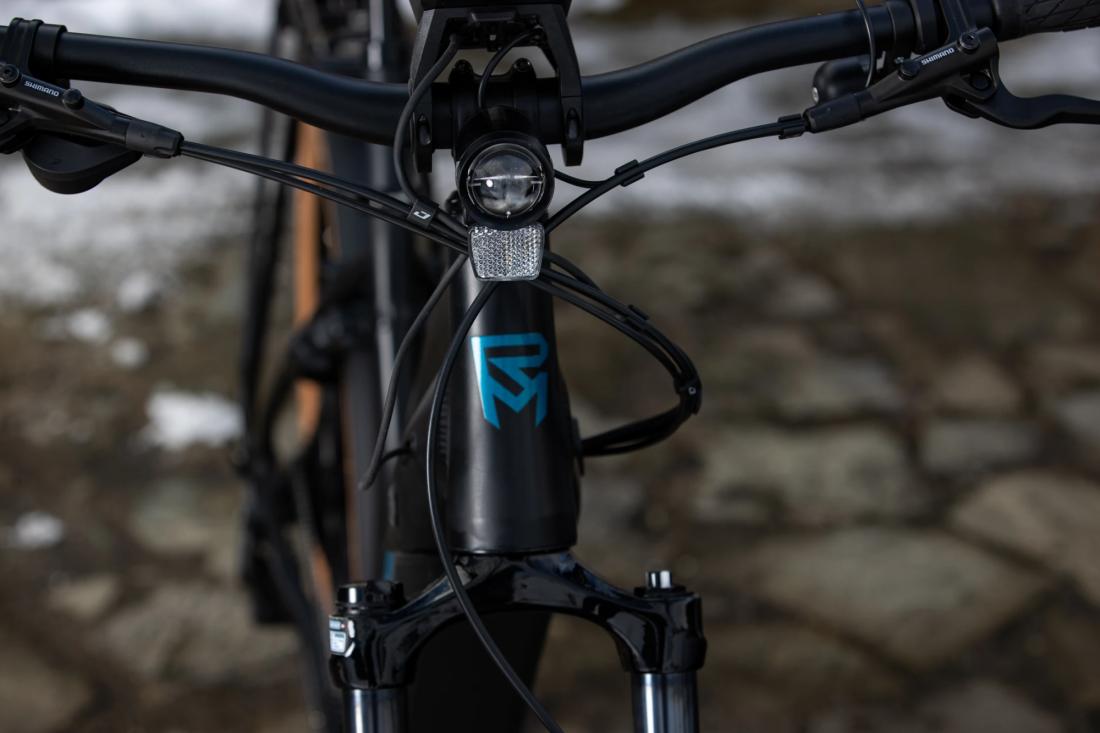

HERRMANS H-Black PRO E Front Light
REAR LIGHT SPANNINGA Pling XE
FENDERS Full-coverage alloy mudguards

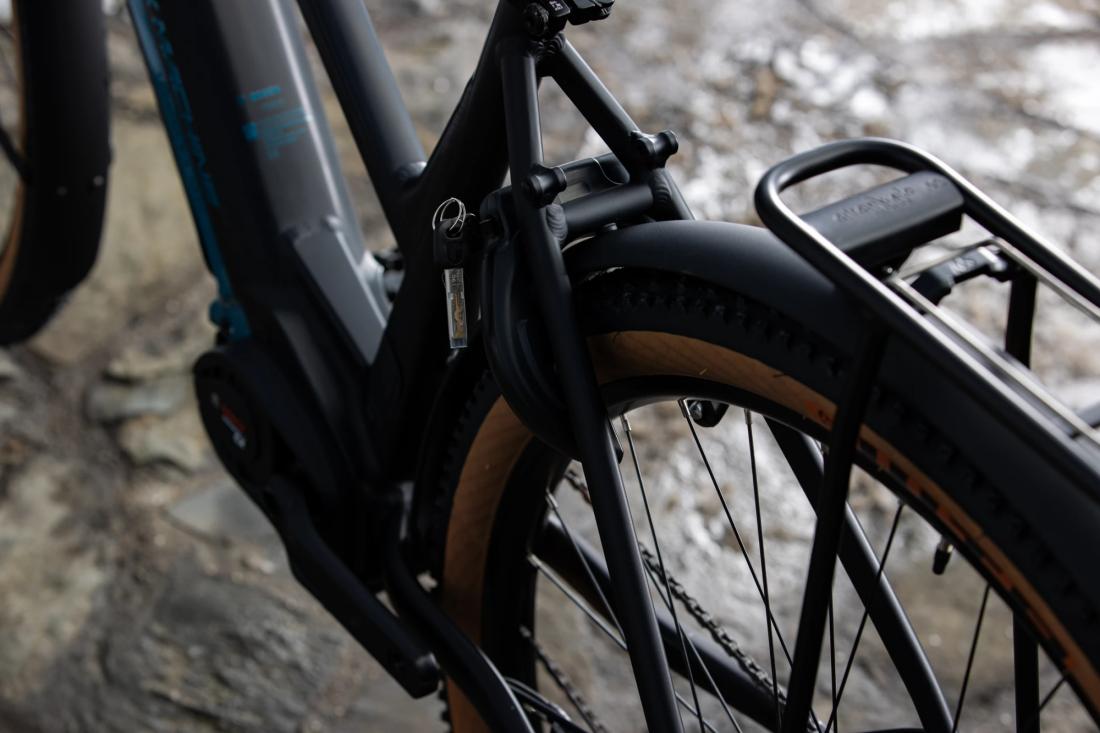

LUGGAGE RACK Alloy for AVS
ATRAN VELO, REX STAND
FRAME LOCK AXA Atlas removable key -
