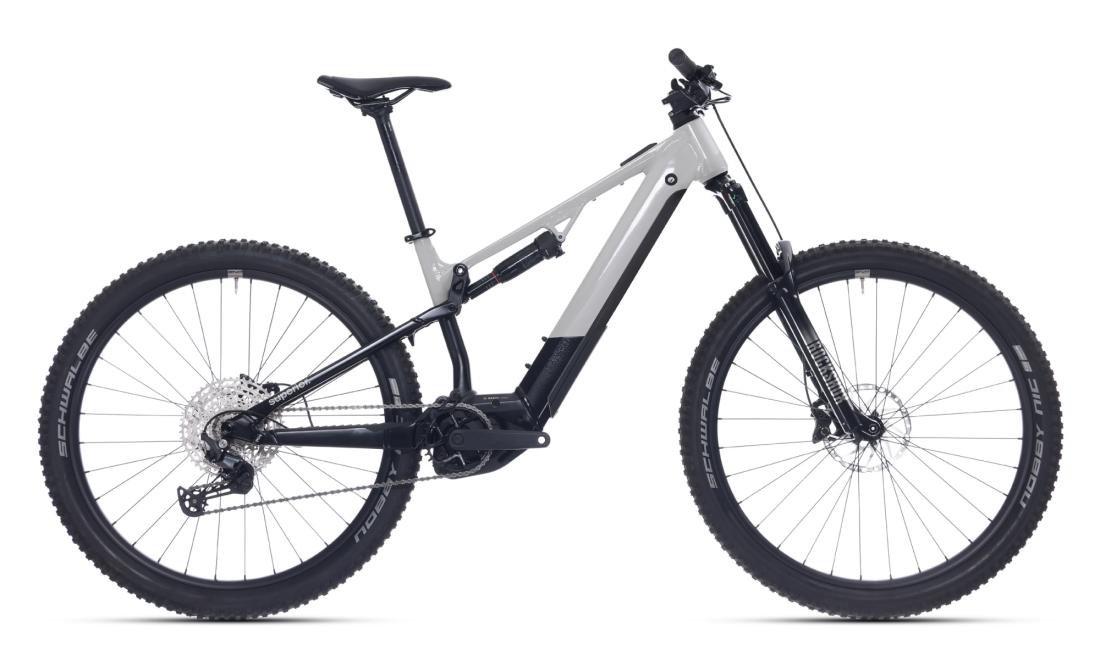

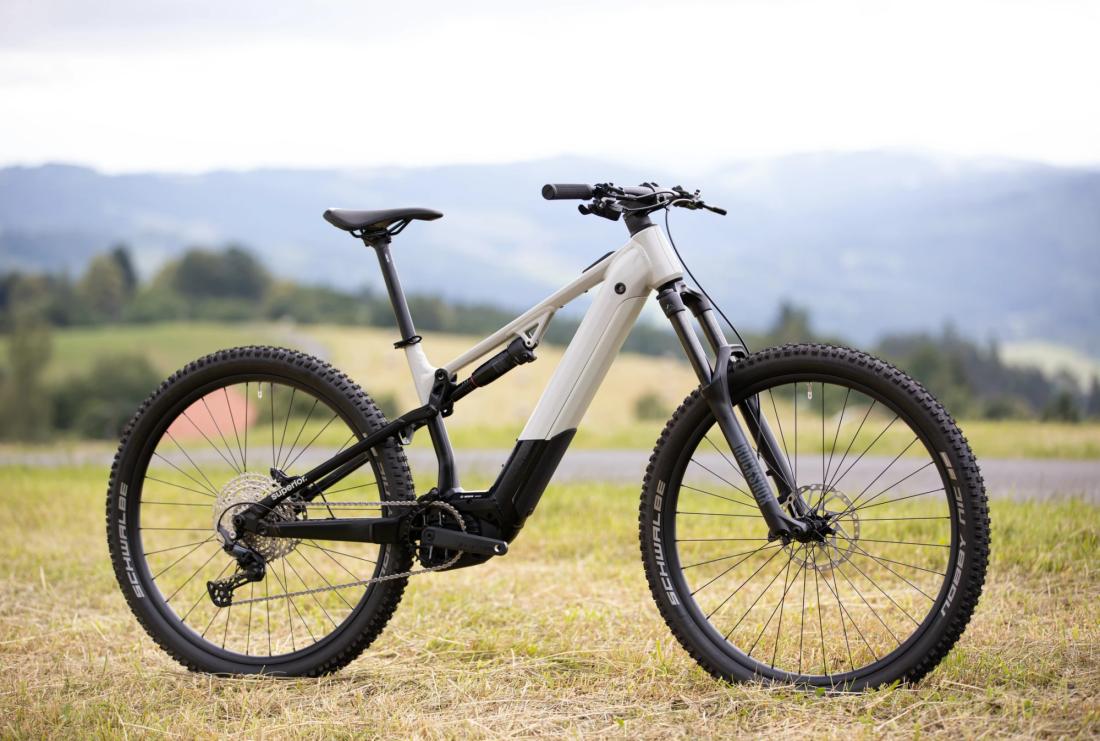

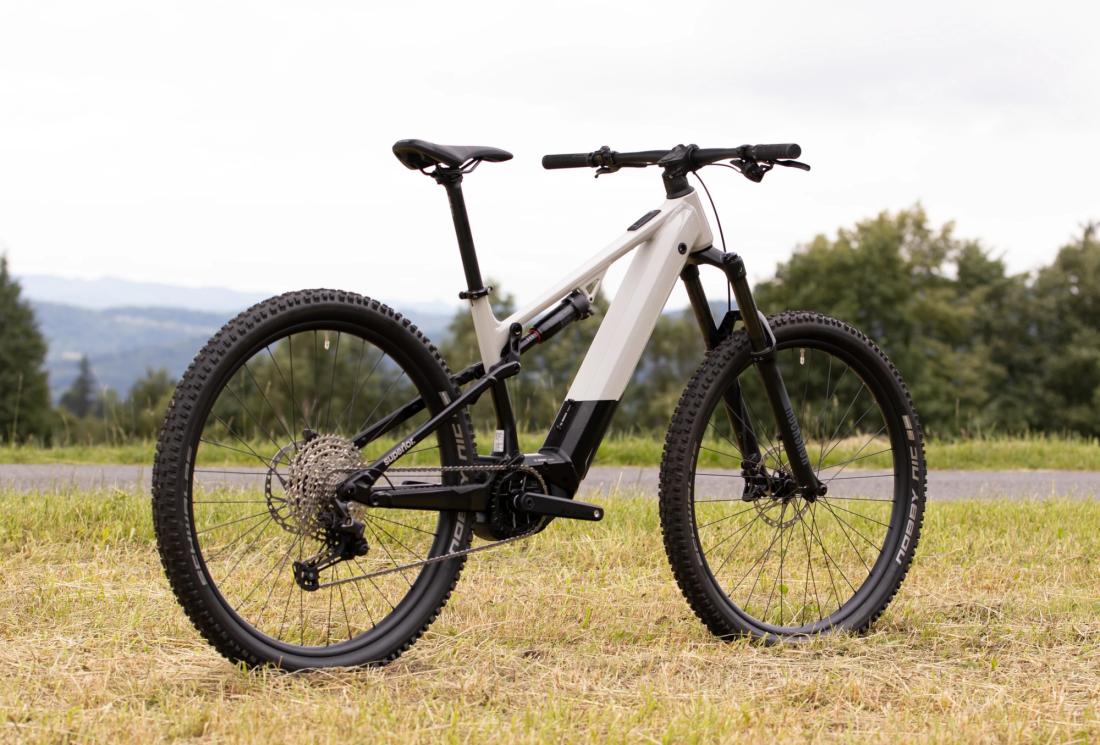

Electric bike frame with seamless integration of the battery, motor and internal cabling.
The most powerful Bosch CX Performance drive unit stands out for its extraordinary power,
quiet operation and low weight.
Combined with the 625 Wh battery, you get up to 150 km of range on a single charge. Shimano Deore ensures smooth gear changes. With this bike, you can tackle even tougher terrain thanks to the RockShox suspension or high-quality Schwalbe tyres.
- Product details
- Features
-
SPECIFICATIONS
BOSCH CX Performance E-SYSTEM, 625Wh PowerTube battery, Intelligent System
RANGE 150 kilometres
MAXIMUM TORQUE 85 Nm / 400%
ASSIST UP TO 25 km/h
WEIGHT 25.15 kg
ISO AND EN STANDARDS
ISO STANDARD EN 15194 standard for ‘electronically power-assisted cycles’ (EPAC)
EN STANDARD EN17406 Condition 4 For rough off-road riding and jumps of less than 120 cm
LOAD CAPACITY 150 kg
ELECTRIC BIKE PARTS
DRIVE UNIT BOSCH CX Performance Line, 85 Nm
BOSCH 4A CHARGER
BOSCH PowerTube battery, 625Wh

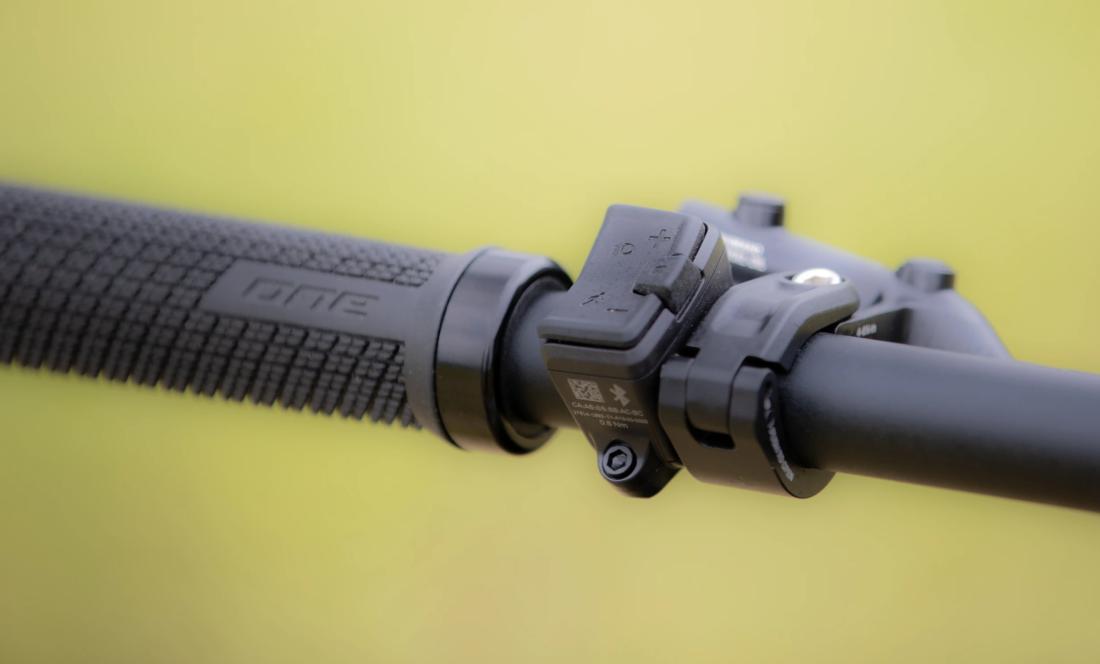

DISPLAY BOSCH Mini Remote
BIKE FRAME
SUE03-CXBES3 FRAME, Alu X6 Ultralite MTB Trail, advanced e-MTB geometry, 160/140 mm travel, ready for BOSCH CX Performance 5G, integrated battery up to 750Wh, one-piece 3D alloy chainstay, alloy swingarm, 12x148 mm Boost, internal cable routing, drop-out ready
SUSPENSION FORK RockShox 35 Silver TK, tapered, SoloAir, 15x110mm axle, 160mm travel
RockShox Deluxe Select R rear suspension, 230x65mm
ACROS AZX-1051 HEADSET, ICR, ZS56/28.6 - ZS56/40, BlocLock 120°
SB02 REAR AXLE, TA12x171.5, M12xP1.0x14.5mm, Black
DRIVETRAIN
SHIMANO DEORE SL-M6100-IR RIGHT-HAND SHIFT LEVER, RAPIDFIRE Plus, 12-speed
SHIMANO DEORE RD-M6100 REAR DERAILLEUR, Shadow Plus design
CRANKSET Single-chainring, Alloy
CHAINRING UNE Course, 34T

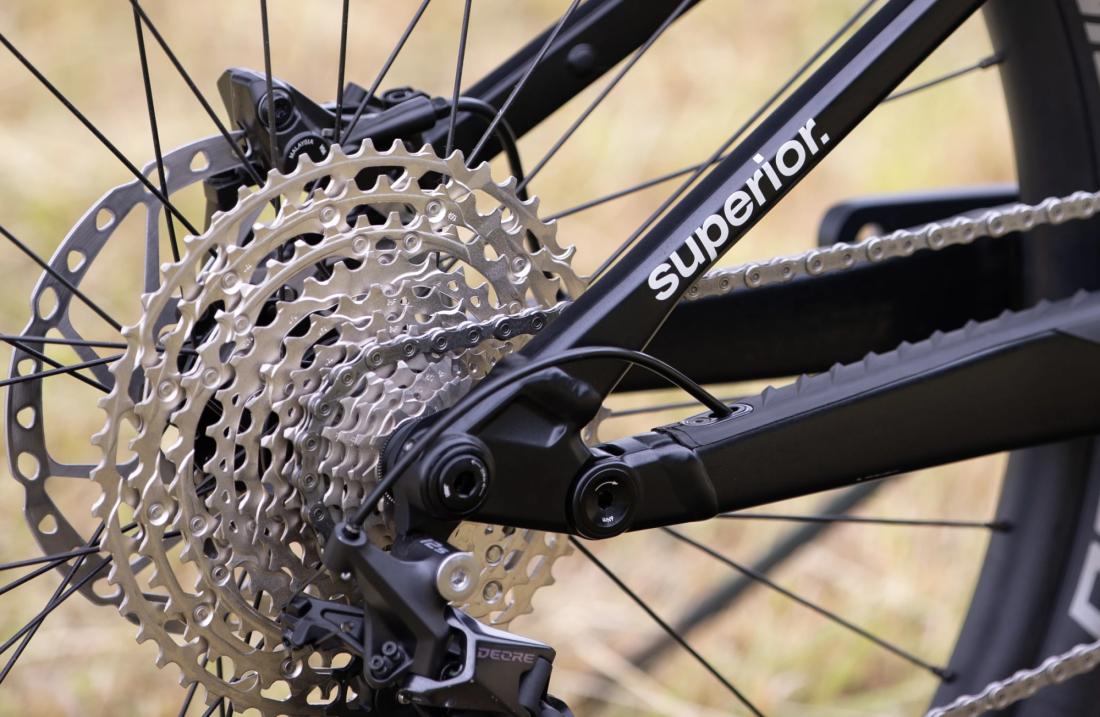

SHIMANO DEORE CS-M6100 Cassette, 12-speed, 10-51T
SHIMANO DEORE CN-M6100 CHAIN
FRONT
FRONT BRAKE SHIMANO MT420, 4-piston, hydraulic disc brake
SHIMANO SM-RT64 FRONT DISC, 180 mm
SHIMANO MT420 REAR BRAKE, 4-piston, hydraulic disc brake
SHIMANO SM-RT64 REAR DISC, 180 mm
WHEELS
SHIMANO HB-MT410-B FRONT HUB, 32H, CL, 15x110mm, THRU-AXLE
FRONT RIM STARS J30D, Disc, Tubeless, 32H
FRONT TYRE Schwalbe Nobby Nic Performance, 29x2.60
SHIMANO FH-MT410-B REAR HUB, 32H, CL, 12x148mm, THRU-AXLE
REAR RIM STARS J30D, Disc, Tubeless, 32H
REAR TYRE Schwalbe Nobby Nic Performance, 29x2.60
SPOKES: SAPIM Leader, black stainless steel
SAPIM Nipples, Brass
FRAME
UN ICR stem, alloy, 35 mm, 0°
HANDLEBAR UN alloy, 12 mm height, 35 mm
LEFT-HAND GRIPS UN single-action, locking
RIGHT-HAND GRIP UNE single-action, locking
COMPONENTS
SADDLE Selle Royal Vivo
SEAT POST ONE Race, alloy, 30.9 mm
SEAT CLAMP ONE CC-617, 34.9 mm, with quick-release lever, black -
