Electric bike frame with seamless integration of the battery, motor and internal cabling.
The most powerful Bosch CX Performance drive unit stands out for its extraordinary power,
quiet operation and low weight.
Combined with the 625 Wh battery, you get up to 150 km of range on a single charge. Shimano Deore ensures smooth gear changes. With this bike, you can tackle even tougher terrain thanks to the RockShox suspension or high-quality Schwalbe tyres.
- Product details
- Features
-
BASIC INFORMATION
BOSCH CX Performance E-SYSTEM, 500Wh PowerTube battery, Smart System
RANGE 150km
MAXIMUM TORQUE 85Nm / 400%
ASSIST UP TO 25km/h
WEIGHT 28.55 kg
ISO AND EN STANDARDS
ISO STANDARD EN 15194 Standard for ‘Electronically Power Assisted Cycles’ (EPAC)
EN STANDARD EN 17406 Condition 3 For rough off-road riding and jumps of less than 60 cm
LOAD CAPACITY 150 kg
ELECTRIC BIKE PARTS

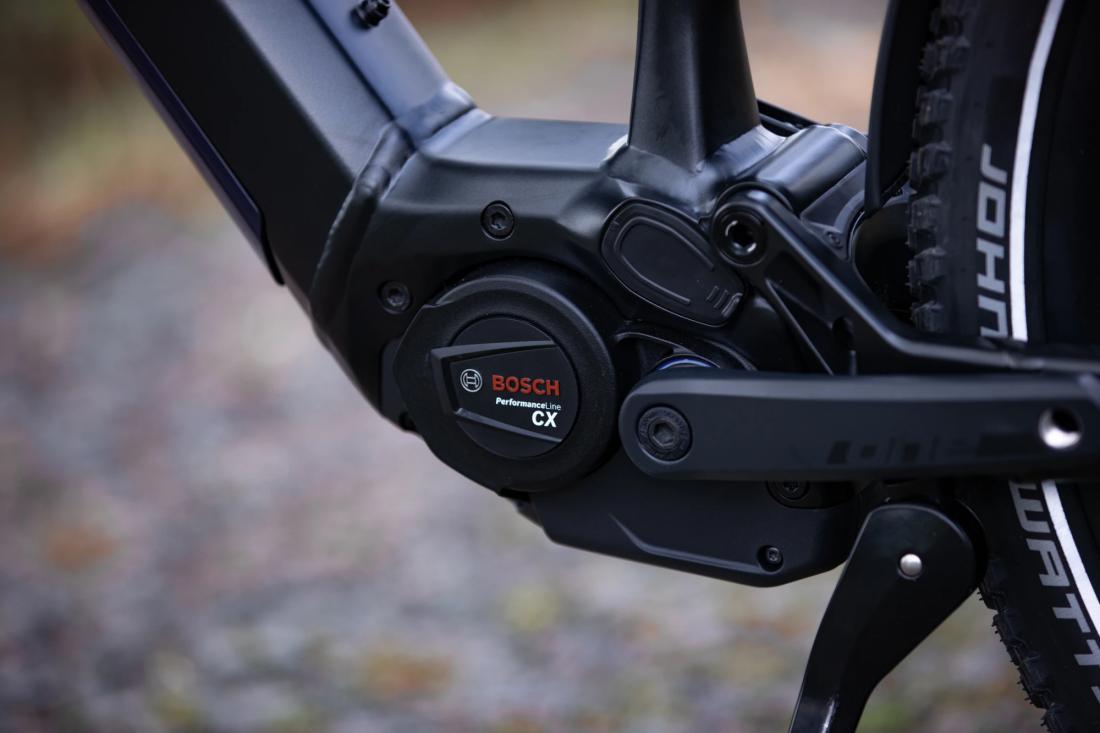

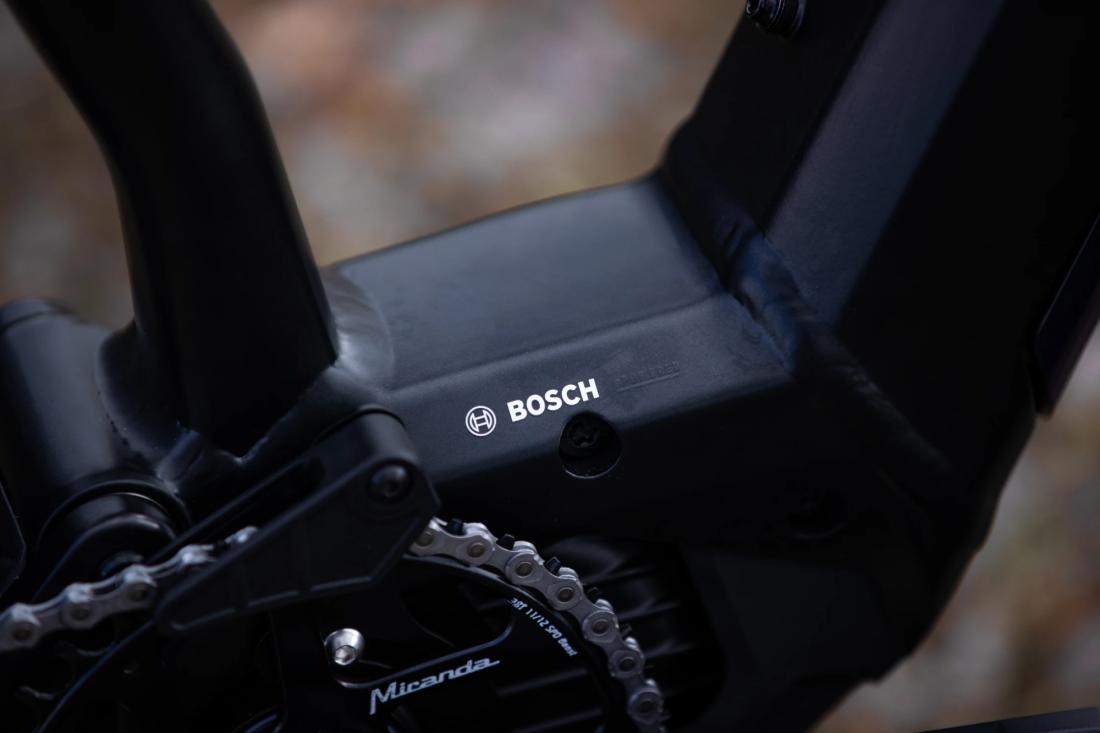

DRIVE UNIT BOSCH Performance Line CX, 85 Nm
BOSCH 4A CHARGER

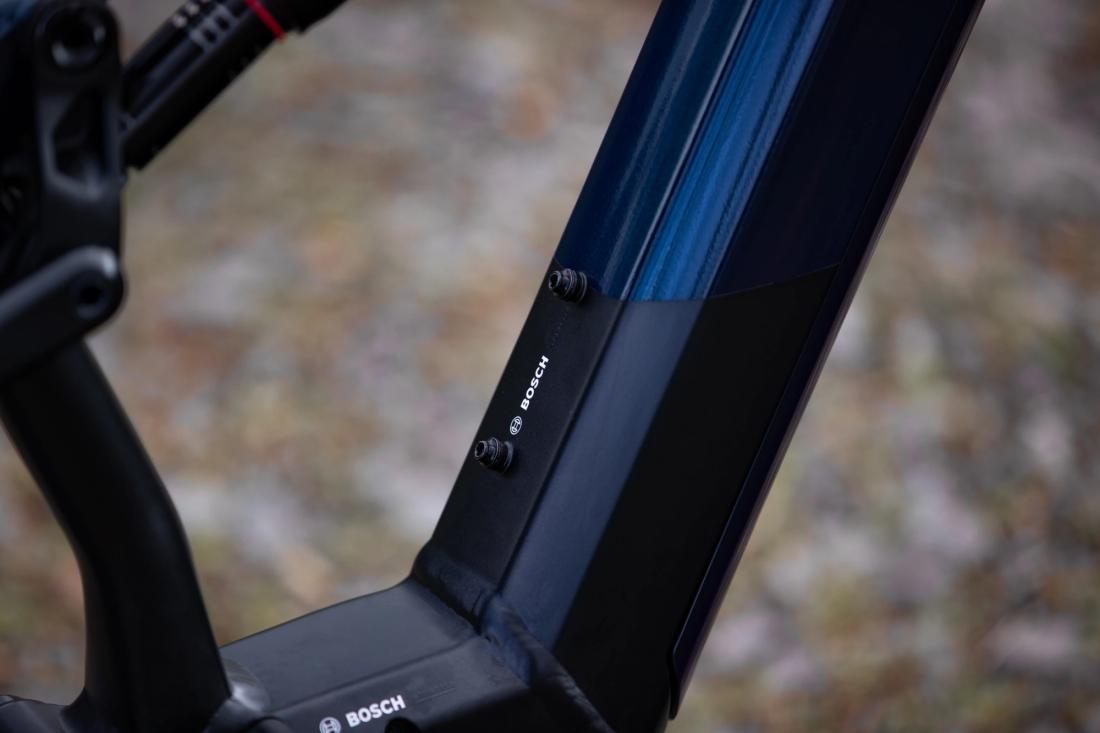

BOSCH PowerTube battery, 500Wh

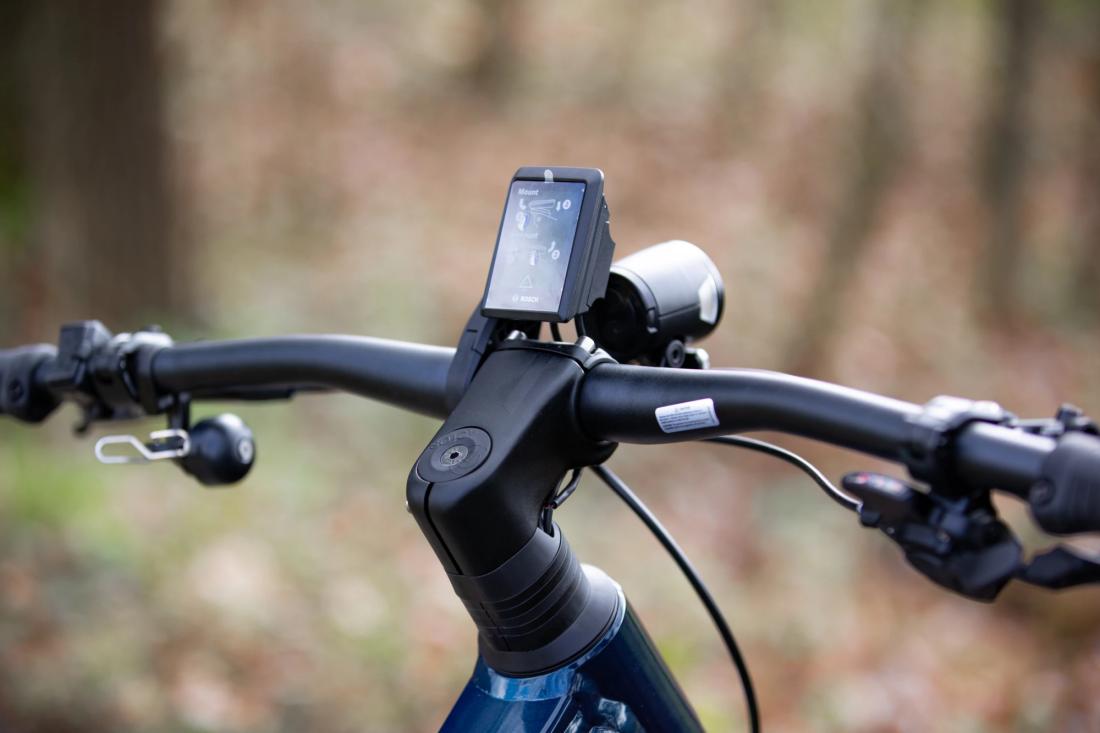

BOSCH Kiox 300 DISPLAY
BIKE FRAME
SUE03-CXBES3 FRAME, Alu X6 Ultralite MTB Trail, Advanced e-MTB Geometry, Travel 160/140 mm, BOSCH CX Performance 5G ready, Integrated battery up to 750Wh, 3D alloy one-piece link, Alloy swingarm, Boost 12x148 mm, Internal cable routing, Dropped seat post ready
RST Blade suspension fork, 1.5", 15x110mm axle, 140mm travel

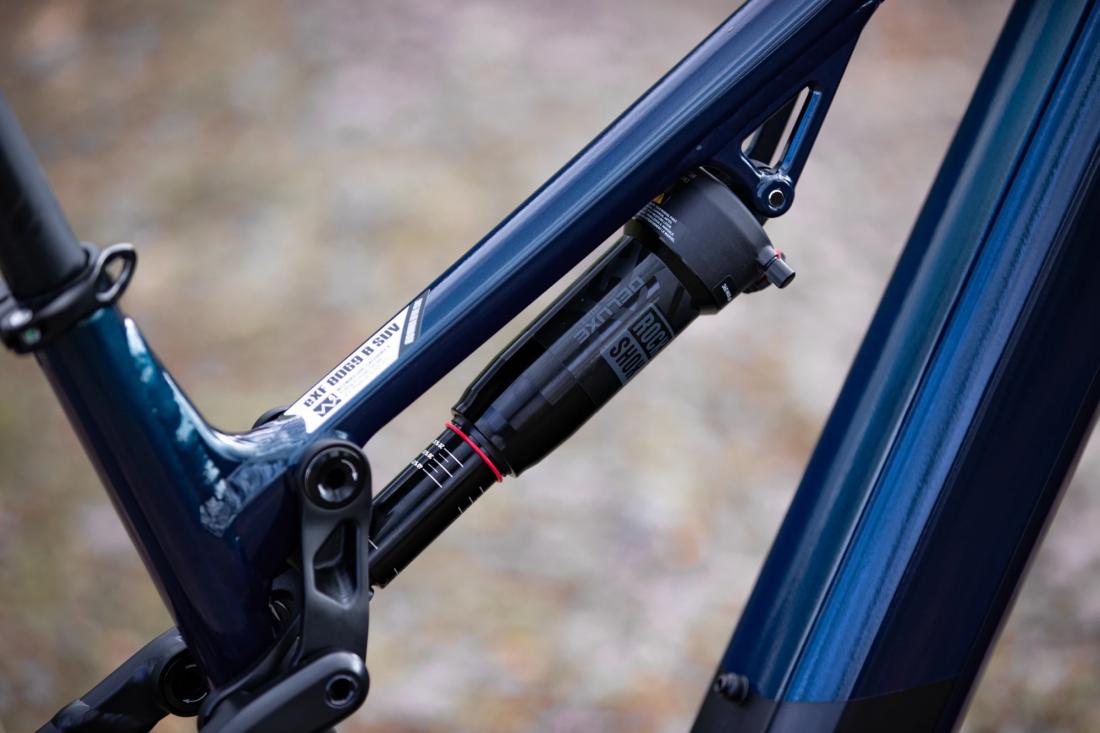

REAR SUSPENSION RockShox Deluxe Select R, size 230x57.5mm
ACROS AZX-1051 HEADSET, ICR, ZS56/28.6 - ZS56/40, BlockLock 120°
REAR AXLE SB02, TA12x171.5, M12xP1.0x14.5mm, Black
DRIVETRAIN
SHIMANO DEORE SL-M5100-IR RIGHT SHIFT LEVER, RAPIDFIRE Plus, 11-speed

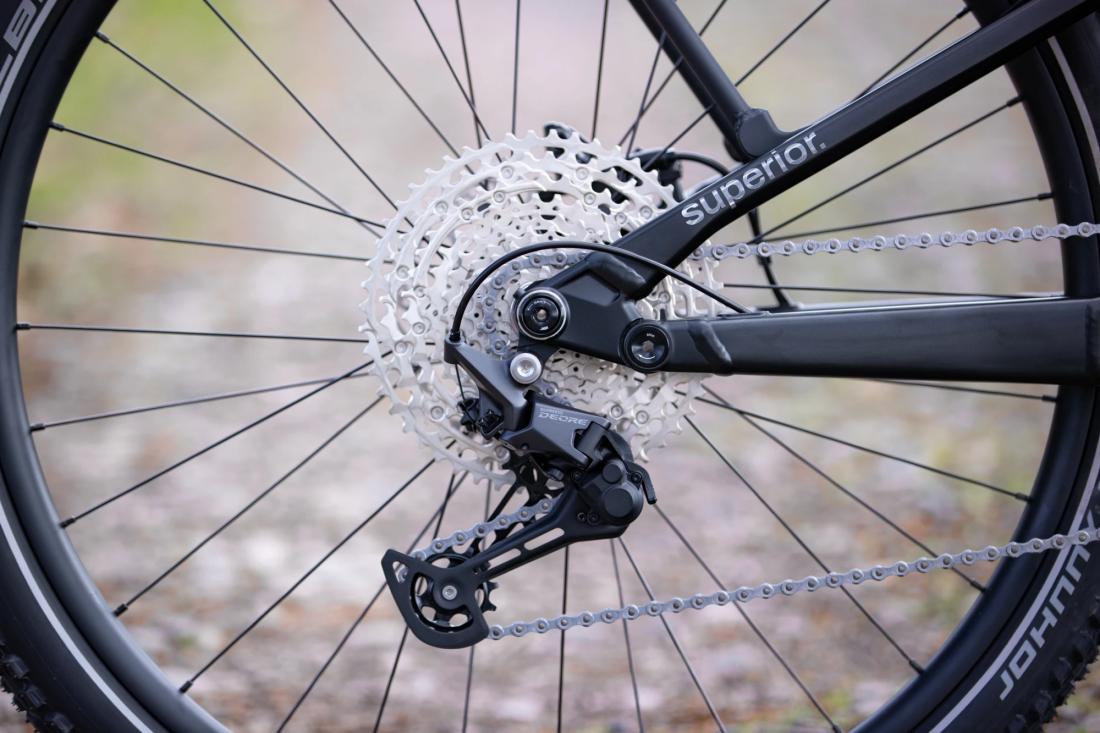

SHIMANO DEORE RD-M5100 REAR DERAILLEUR, Shadow Plus Design

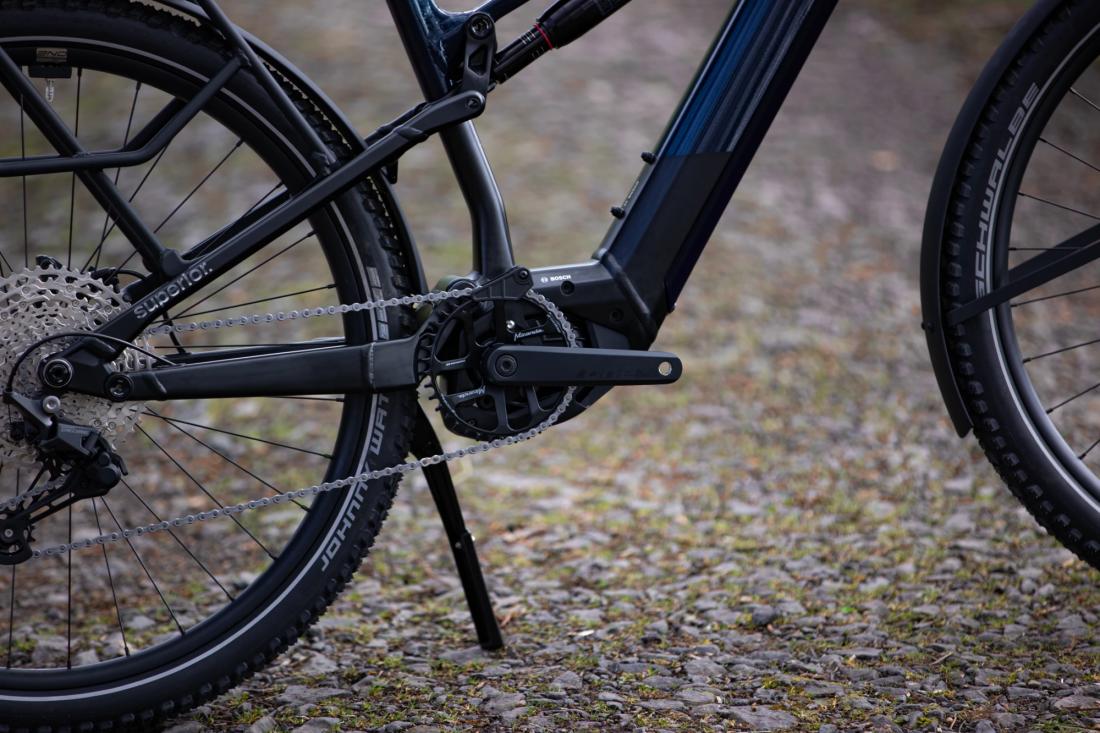

ONE Race Crankset, Alloy
ONE Race chainring, 38T
SHIMANO DEORE CS-M5100 Cassette, 11-speed, 11-51T
KMC e11T CHAIN
BRAKES
SHIMANO MT420 FRONT BRAKE, 4-piston, hydraulic disc brake
SHIMANO SM-RT54 FRONT DISC, 180mm
SHIMANO MT420 REAR BRAKE, 4-piston, hydraulic disc brake
REAR DISC SHIMANO SM-RT54, 180mm
WHEELS
SHIMANO HB-MT410-B FRONT HUB, 32H, CL, 15x110mm, THRU-AXLE
FRONT RIM STARS J30D, Disc, Tubeless, 32H
FRONT TYRE Schwalbe Johnny Watts Performance, 29x2.35", ADDIX
REAR HUB SHIMANO FH-MT400-B, 32H, CL, 12x148mm, THRU-AXLE
REAR RIM STARS J30D, Disc, Tubeless, 32H
REAR TYRE Schwalbe Johnny Watts Performance, 29x2.35", ADDIX
SPOKES: SAPIM Leader, Stainless Black
SAPIM NIPPLES, Brass

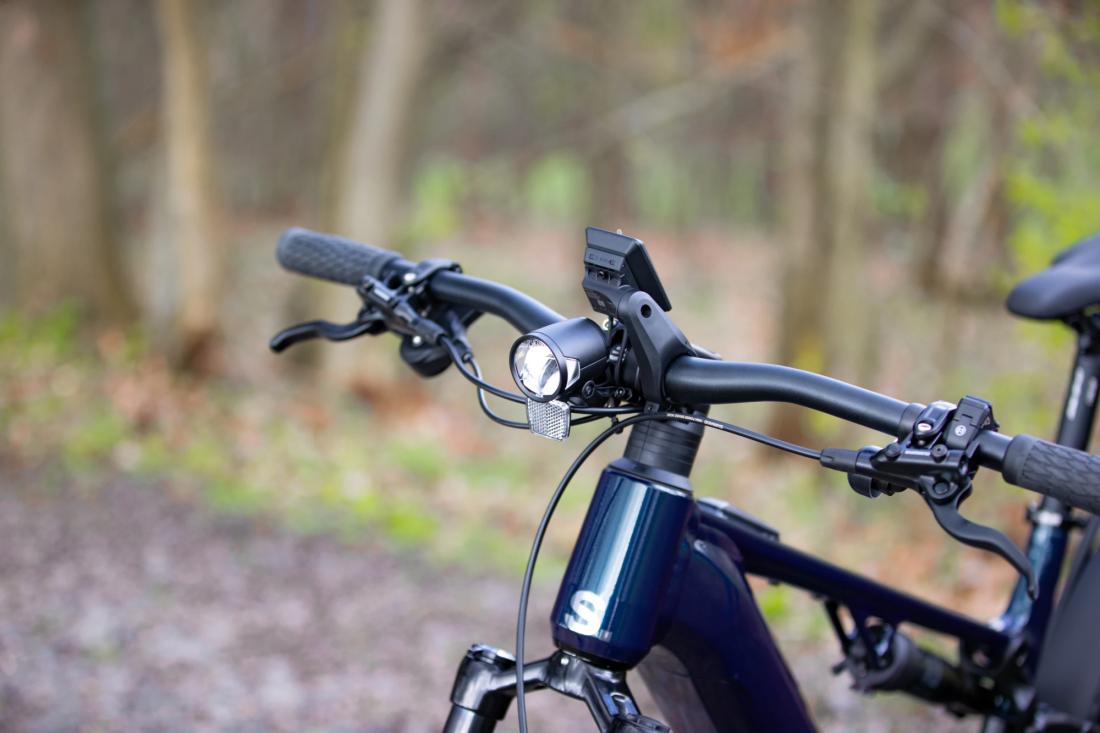

DRIVER'S COMPARTMENT
ONE ICR STEM, Alloy, 31.8mm, 0°
HANDLEBAR ONE Alloy, 20mm rise, 31.8mm
LEFT HANDLEBAR GRIPS ONE Sport Ergo, Lock-On
RIGHT HANDLEBAR GRIP ONE Sport Ergo, Lock-On
COMPONENTS
SADDLE Selle Royal Vivo
SEATPOST ONE Race, Alloy, 30.9mm
SEATPOST CLAMP ONE CC-617, 34.9mm, with Quick Release lever, Black
EQUIPMENT
FRONT LIGHT HERRMANS H-Black MR8 E, 180lm

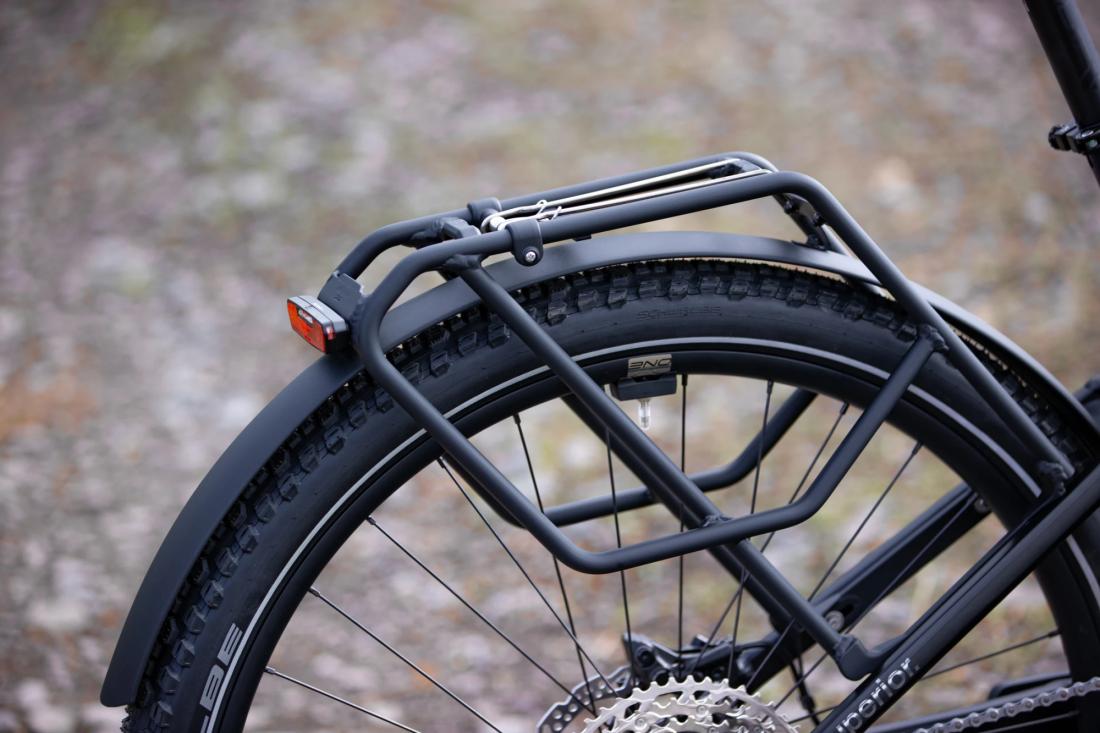

REAR LIGHT AXA Blueline
MUDGUARDS Alloy -
